Ultrafiltration Membranes

With steady increase in global population, the need for recycling and reuse of water resources for industrial and domestic purposes becomes indispensable for the future of our planet. Since its commercialization in the 1960s, water purification using ultrafiltration (UF) technology has found its path into various fields ranging from medicine to dairy. This is primarily due to the UF membranes’ potency and efficiency in separating contaminants, particulates, macromolecules and suspended solids.

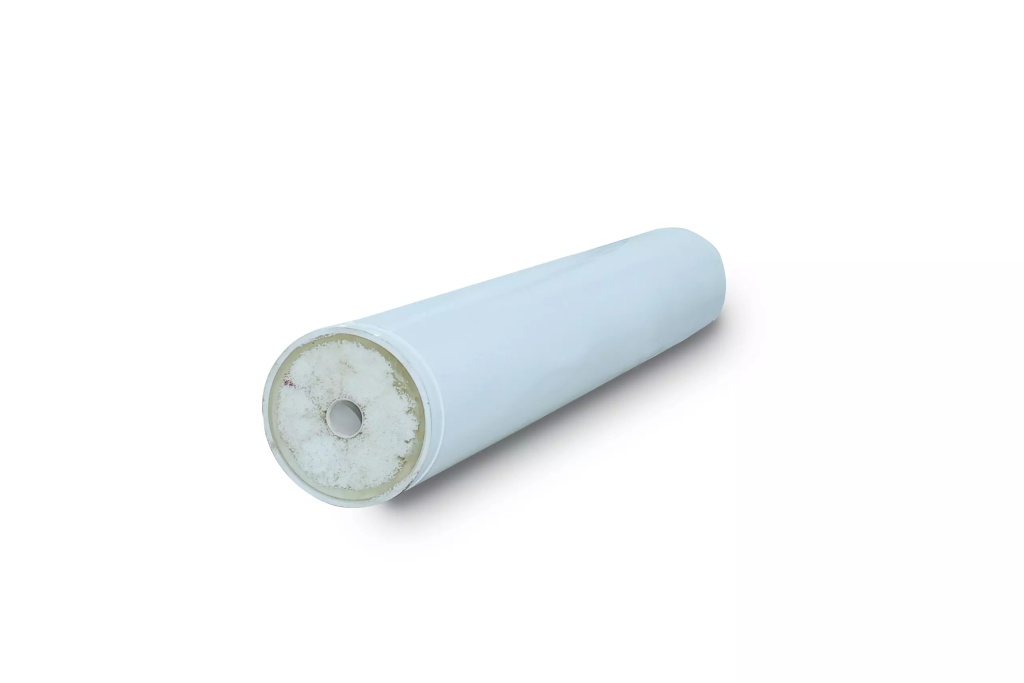

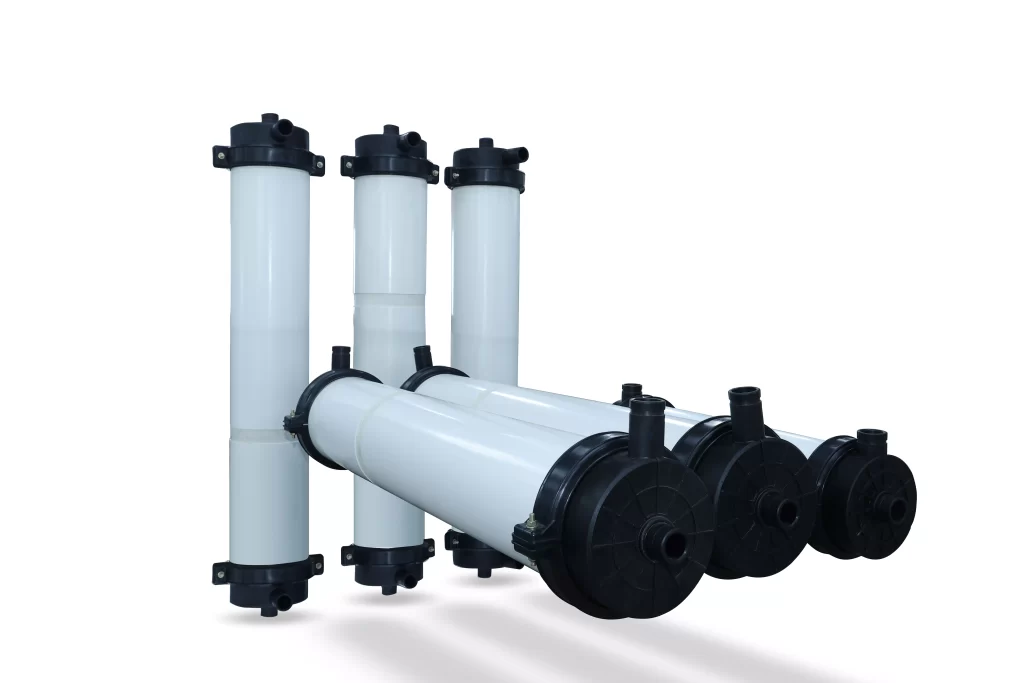

TiCOME Technologies are specialized in manufacturing out-to-in and in-to-out Single Bore Membranes (SBM) for different industrial applications. Our capillary-type UF membranes are made of anti-fouling materials with the following characteristics:

  • Flux range between 60 and 150 Litre/m²/hr
  • Service life of 5 years, based on feed water quality
  • No suspended solids
  • > 6 log bacterial reduction
  • < 0.5 NTU turbidity

Standard Sizes of our SBM membranes:

Out-to-in: In-to-Out:
Ø225 mm x 1530 mm; 51 m² Ø225 mm x 1530 mm; 55 m²
Ø225 mm x 1830 mm; 65 m² Ø225 mm x 1830 mm; 65 m²
Ø280 mm x 1530 mm; 77 m² Ø280 mm x 1530 mm; 65 m²
Ø280 mm x 1830 mm; 90 m² Ø280 mm x 1830 mm; 85 m²

Applications:

  • ETP
  • STP
  • MBR
  • Seawater Pre-treatment
  • Endotoxin removal in dialysis
  • Brine Purification

and many more…
